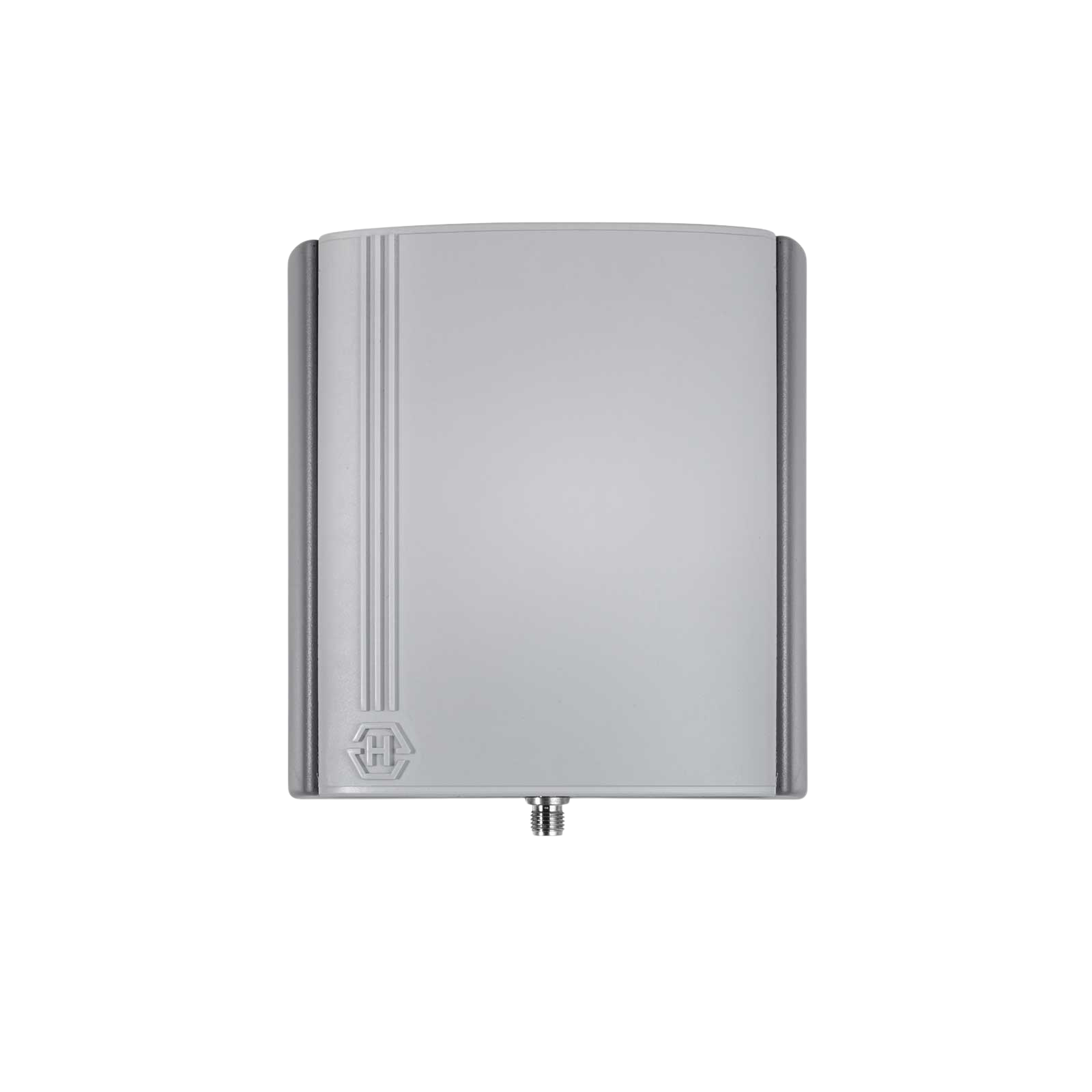

Richtantenne-2,4-GHz-Art.-Nr.-10774

Directional antenna for 2.4 GHz Item: 10774

Column 1
Opening angle
h: 70° v: 65°
Polarization
RHCP
Antenna gain
8.5 dBi
Protection class (IP)
IP20
Port
SMA-female
Mounting
Wall mount
Suitable antenna cable
10589 (SMA-male 0,5m), 10629 (SMA-male 1m), 10279 (SMA-male 2m), 10273 (SMA-male 4m), 10935 (SMA-male 6m), 10284 (SMA-male 10m)
Optional mounting material
10519 (Antenna mounting assembly), 10882 (Fixing kit)
Dimensions in mm
101 mm x 95 mm x 32 mm
Scope of delivery
Antenna, mounting material for wall assembly
Antenna Frequency
2300 – 2500 MHz

The higher the antenna gain, the greater the range,
but the smaller the beamwidth, and the narrower
the beamwidth, the greater the range.

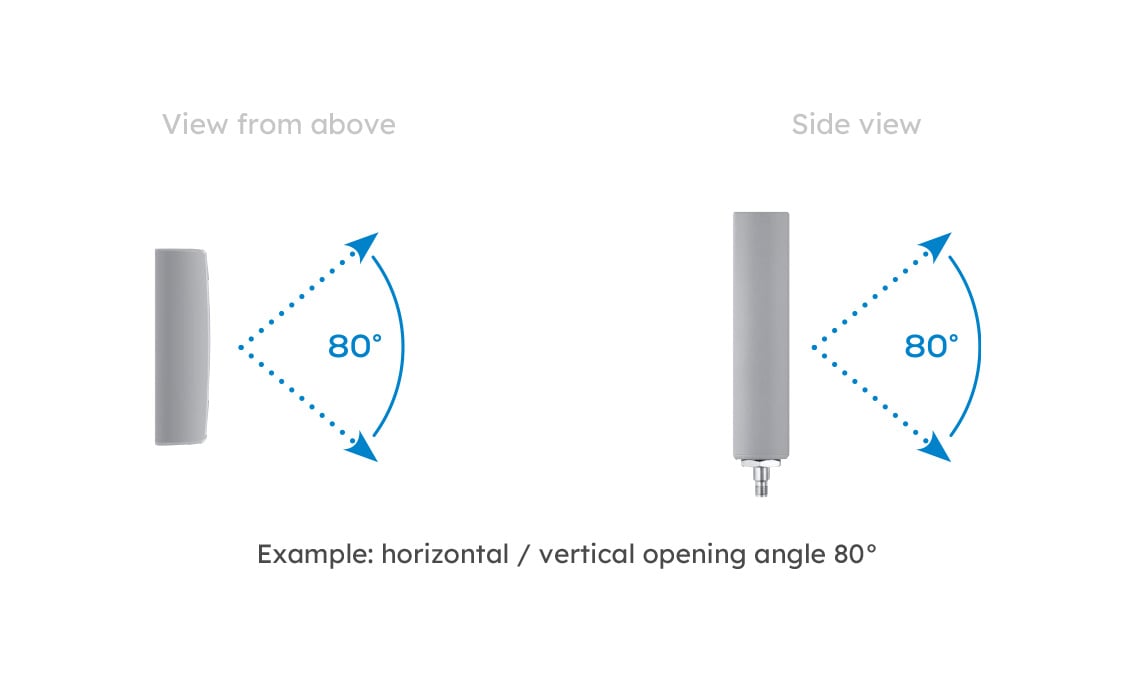

bild-antennen-richtantenne-en

Directional antennas basics

A directional antenna focuses its radiation density in a specific direction. Due to its directivity, interfering transmitters placed outside of primary or secondary lobes are muted, and the antenna increases its reach in beam direction. Consequently the antenna radiates in one direction only,
with an opening angle of e.g. 80°.

You can find more information on antenna technology basics here!

Matching accessories

Mounting accessories

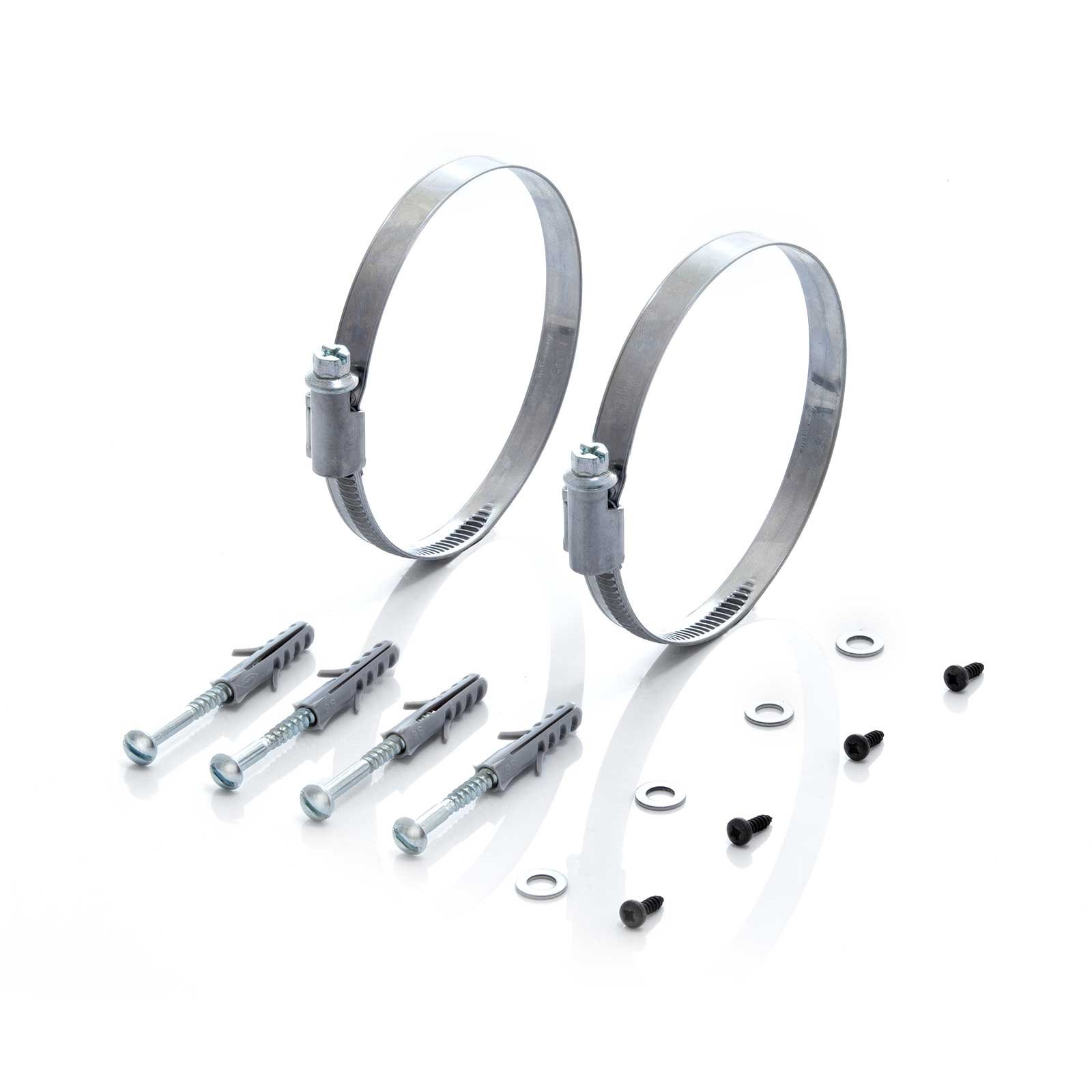

Fixing kit item number 10882

Mounting accessories

Accessories for antenna mounting

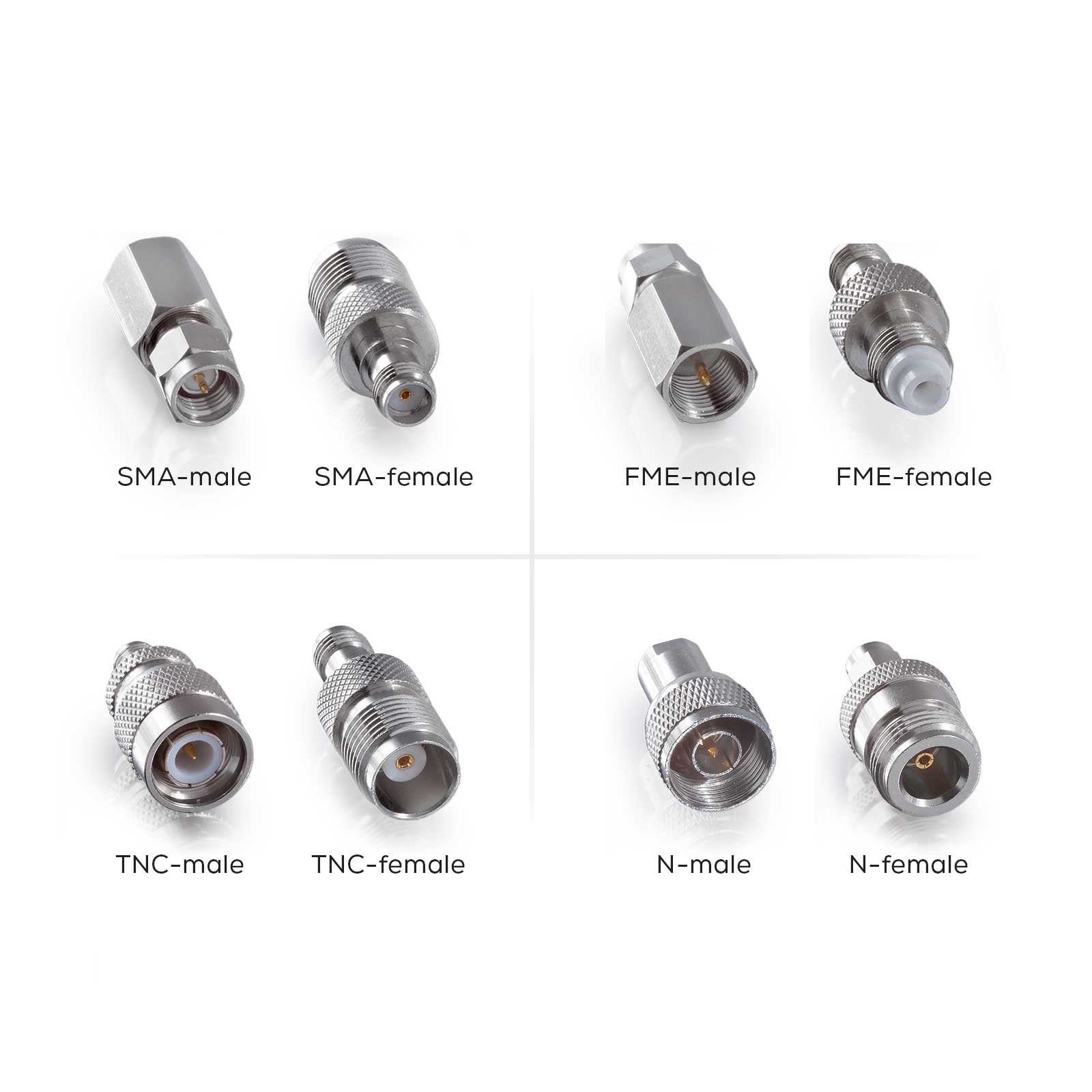

Adapters
Antennen-Adapter

Adapters

Adapter for antennas

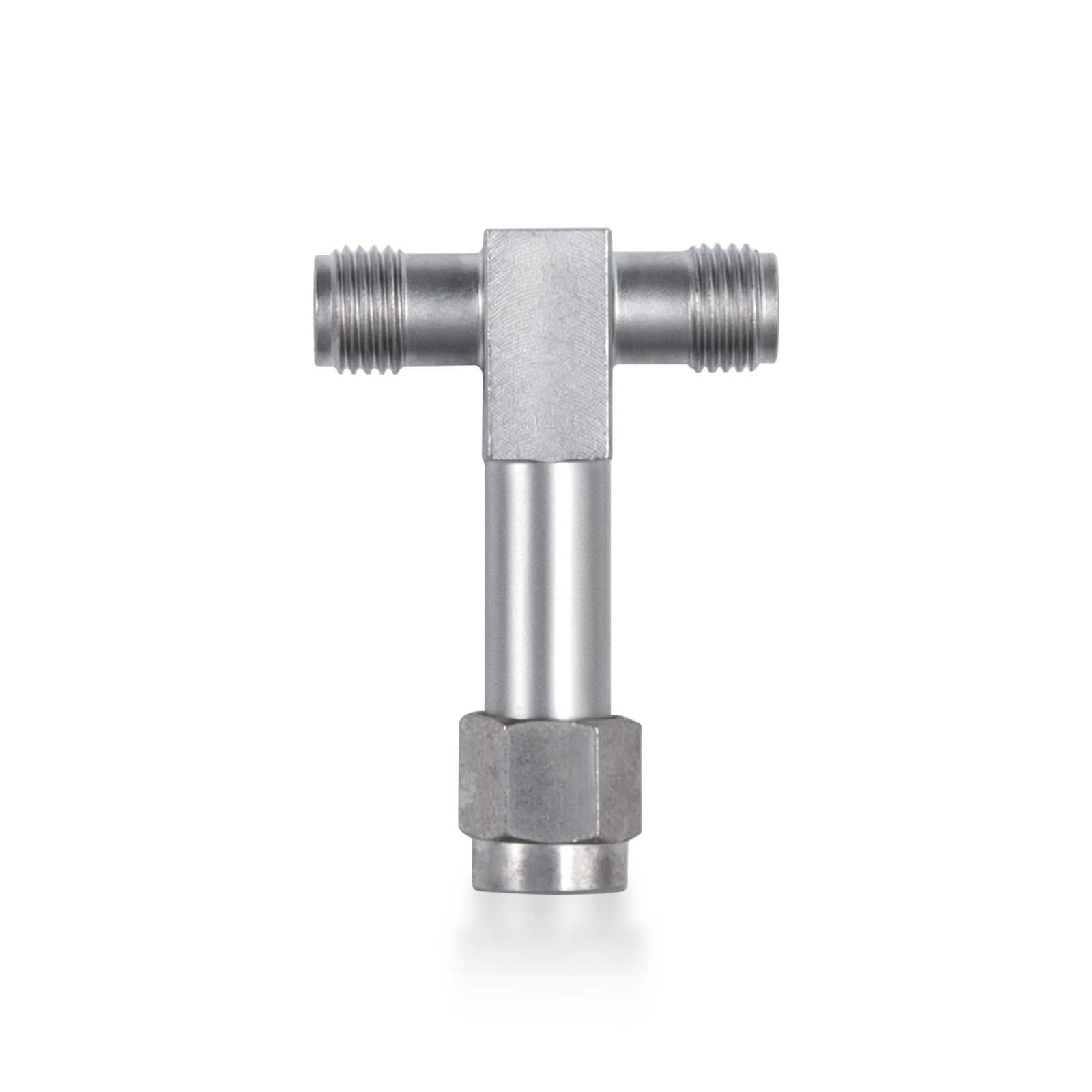

Antenna splitter
2-fach-Splitter-Art.-Nr.-10297

Antenna splitter

Distribution of transmission power between two antennas

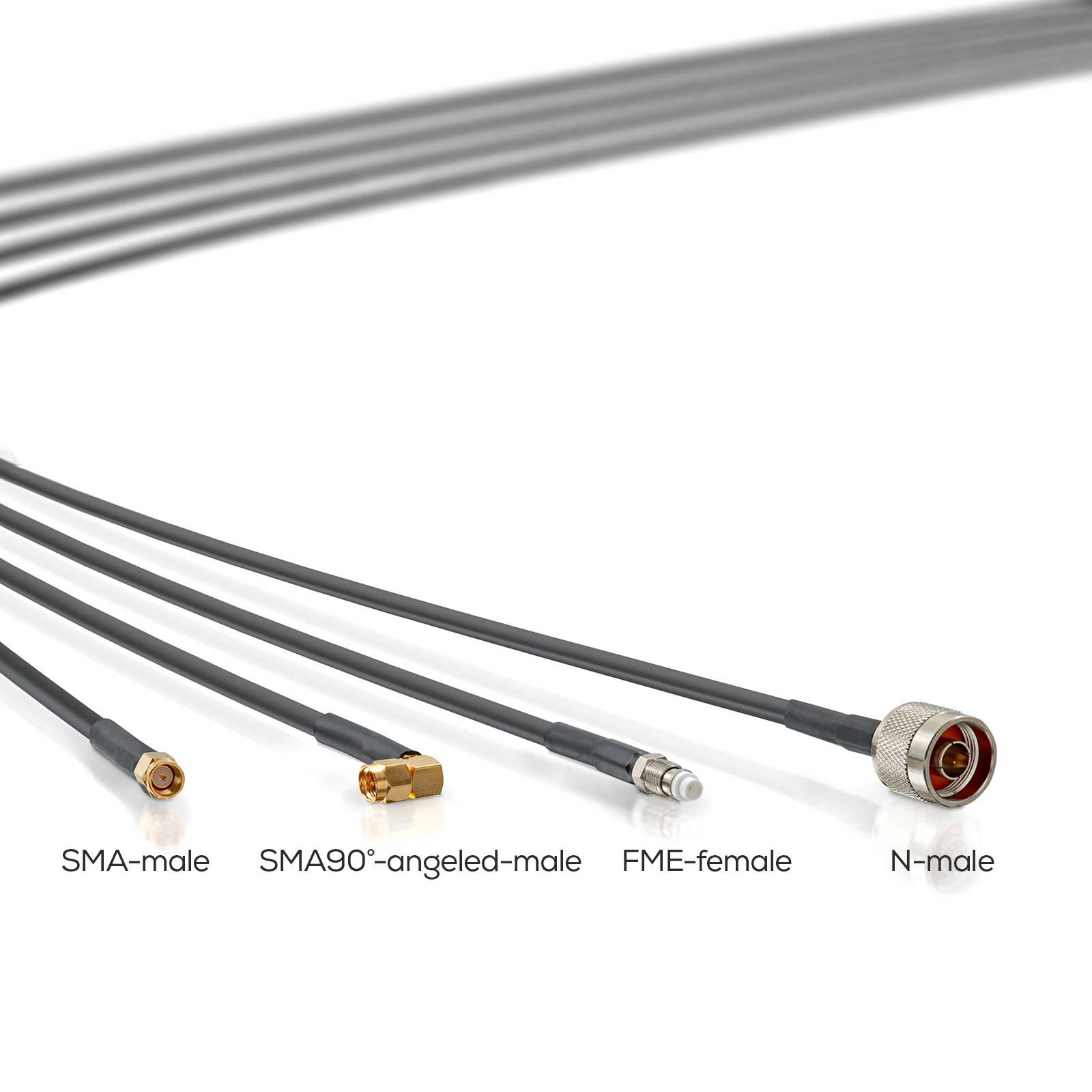

Antenna cables
Antennenkabel

Antenna cables

Our most common antenna cables
