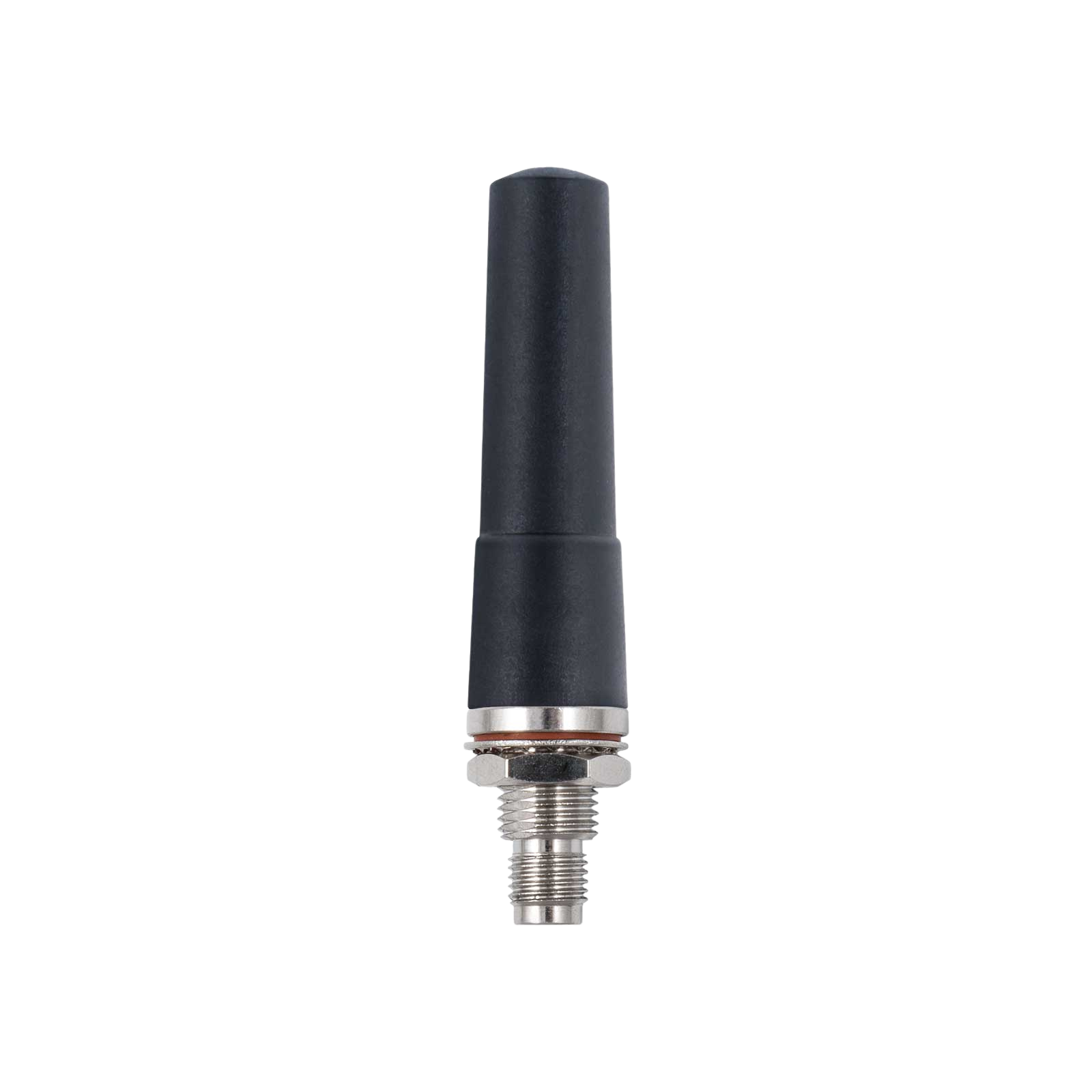

Rundstrahlantenne Art. Nr.: 11085_MD | Schildknecht AG

Column 1

Opening angle

h: 360° v: 80°

Polarization

Vertical

Antenna gain

0 dB

Protection class (IP)

IP20

Port

SMA-female

Mounting

10959 (Mounting bracket) or assembly on control cabinet

Suitable antenna cable

10589 (SMA-male 0,5m), 10629 (SMA-male 1m), 10279 (SMA-male 2m), 10273 (SMA-male 4m), 10935 (SMA-male 6m), 10284 (SMA-male 10m)

Optional mounting material

Dimensions in mm

Height: 43 mm

Scope of delivery

Antenna, Antenna base, Nut, O-Ring, Washer

Antenna Frequency

824 - 960 MHz, 1710 - 1990 MHz

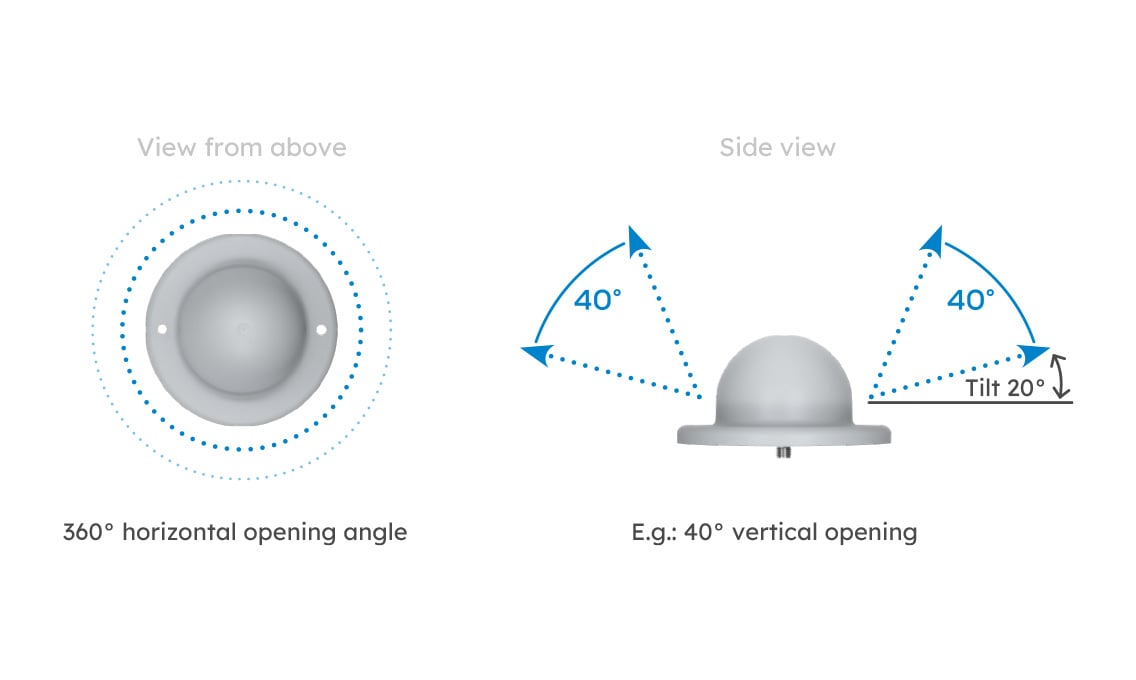

An omnidirectional antenna has an even radiation pattern horizontally in all directions. That means it has a horizontal opening angle of 360°. Therefore it is often used for rotating or mobile applications. Tilt refers to the shifting of the vertical opening angle of an omnidirectional antenna in a specific direction, related to the horizontal level. The image above shows a vertical opening angle of 40° with a tilt of 20°. This means the vertical opening angle has shifted 20° upwards.
You can find more information on antenna technology basics here!
